Internal epoxy, cement, and FBE protection for corrosion resistance and flow efficiency

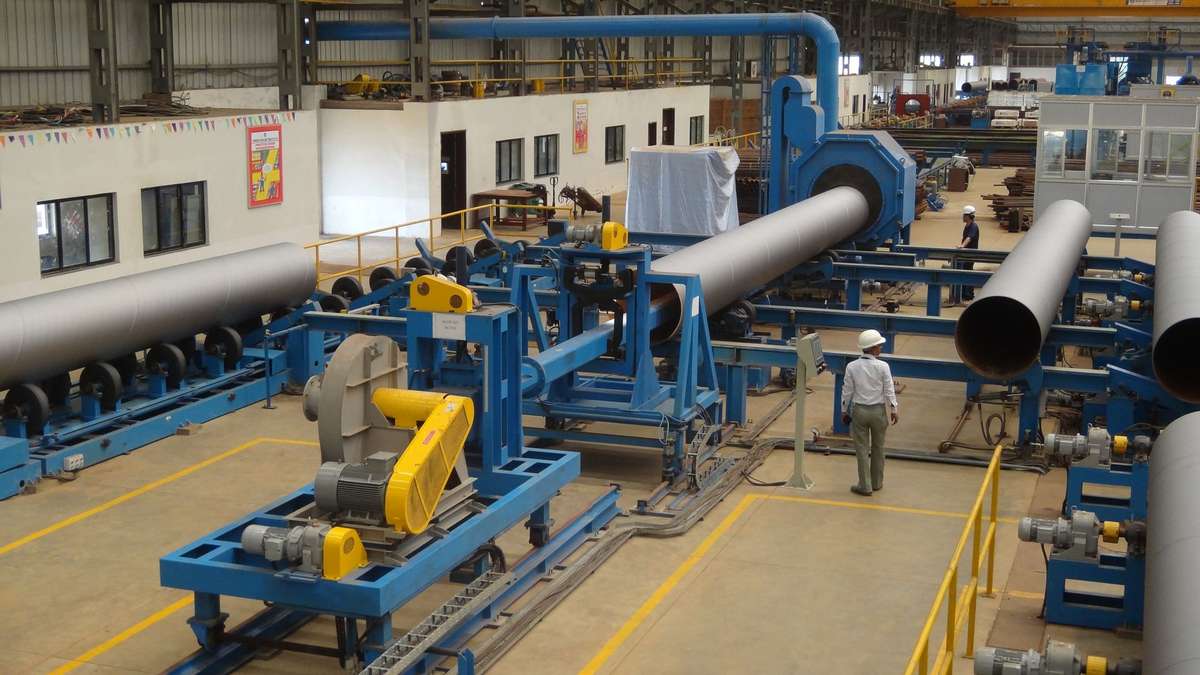

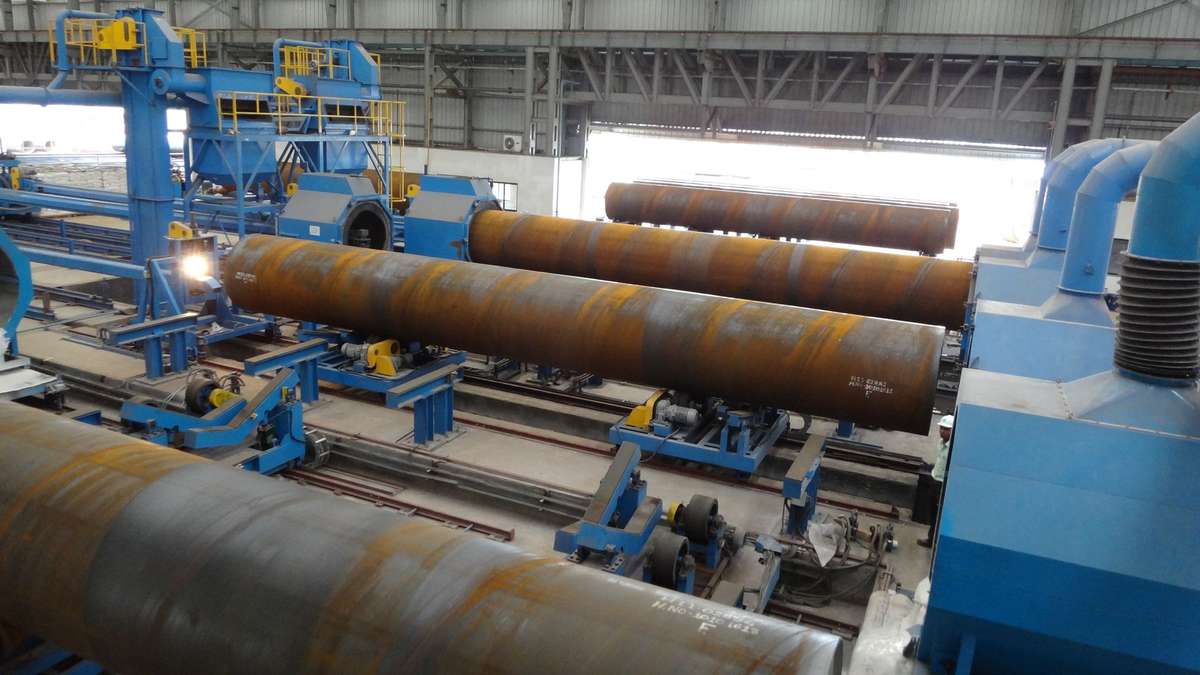

Internal coating protects the pipe bore from corrosion while improving flow efficiency. Complete internal coating plants include degreasing, preheating, internal grit blasting (achieving SA 2.5 / ISO 8501-1 surface preparation), spray application, and curing systems.
Coating options include liquid epoxy (75-100 microns for flow efficiency, up to 1000 microns for anti-corrosion), cement mortar lining, and internal FBE powder coating. Pipe size range: 2" to 140" diameter with throughput up to 1000 m²/hour.
All systems feature fully automated application for consistent coating quality, reduced pressure drop, and extended pipeline service life in water supply, oil and gas, industrial process, and municipal infrastructure applications.
Degreasing
Preheating
Grit Blasting
Spray Application
Curing
2" to 140" (50-3500mm) diameter with scalable solutions for any pipeline project
75-1000 microns depending on application requirements and corrosion protection needs
SA 2.5 / ISO 8501-1 standard through internal grit blasting for optimal coating adhesion
Up to 1000 m²/hour production capacity for efficient large-scale operations
Liquid Epoxy, Cement Mortar, Internal FBE - flexible solutions for diverse applications
Degreasing, Preheating, Grit Blasting, Spray Application, and Curing for complete protection
Smooth internal surface reduces friction and improves fluid dynamics in pipelines
Complete bore protection prevents rust and extends operational pipeline life
Corrosion-resistant coating significantly increases infrastructure durability
Precision robotic systems ensure consistent coating thickness and quality control
Smooth coating surface minimizes flow resistance and operational costs
Flexible solutions to meet specific application requirements and performance standards
Municipal and potable water distribution systems requiring safe, corrosion-resistant pipelines
Hydrocarbon transport and production systems requiring robust internal protection
Chemical processing and manufacturing pipelines requiring specialized corrosion protection
Sewer, stormwater, and utility distribution networks for long-term reliability
Seawater handling and high-salinity applications requiring advanced protection
Specialized chemicals and aggressive fluids requiring compatible coatings
Contact our experts for a customized internal coating solution tailored to your corrosion protection and flow efficiency requirements
