Fusion bonded epoxy, the most widely specified onshore coating solution
FBE (Fusion Bonded Epoxy) is a single-layer thermosetting powder coating applied electrostatically at 180-250°C. The epoxy forms a uniform 400-600 micron barrier providing excellent corrosion protection for onshore buried pipelines globally. This is the most widely specified coating system for land-based pipeline infrastructure.
FBE delivers exceptional cathodic disbondment resistance, making it the ideal choice for pipelines operating under impressed current cathodic protection systems. Fast application speeds and cost-effectiveness combine to make FBE the industry standard for economic, reliable pipeline protection.
Fully compliant with ISO 21809-2, CSA Z245.20, and NACE SP0394 standards, FBE is proven across millions of kilometers of pipeline worldwide.
Decades of field experience with millions of kilometers of protected pipelines globally, demonstrating consistent performance
Single-layer application reduces material and labor costs while maintaining superior corrosion protection standards
Electrostatic spray application enables rapid throughput, reducing production time and costs
Superior performance under impressed current cathodic protection, protecting against coating adhesion loss

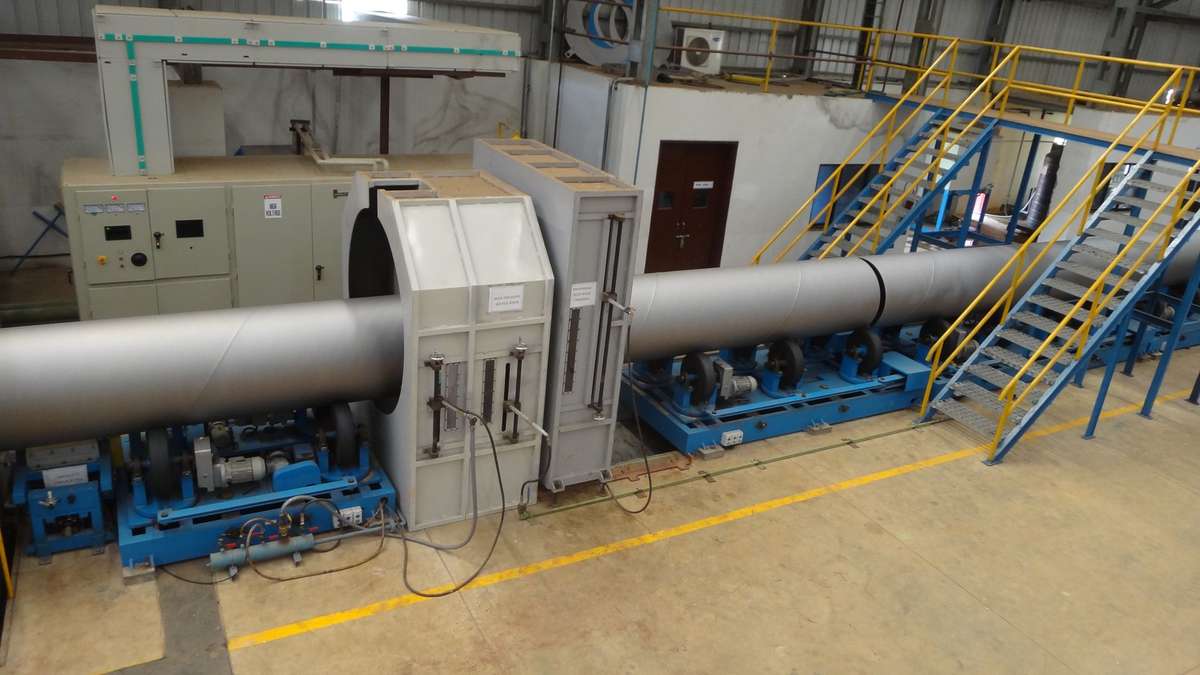

Surface Preparation
Preheating

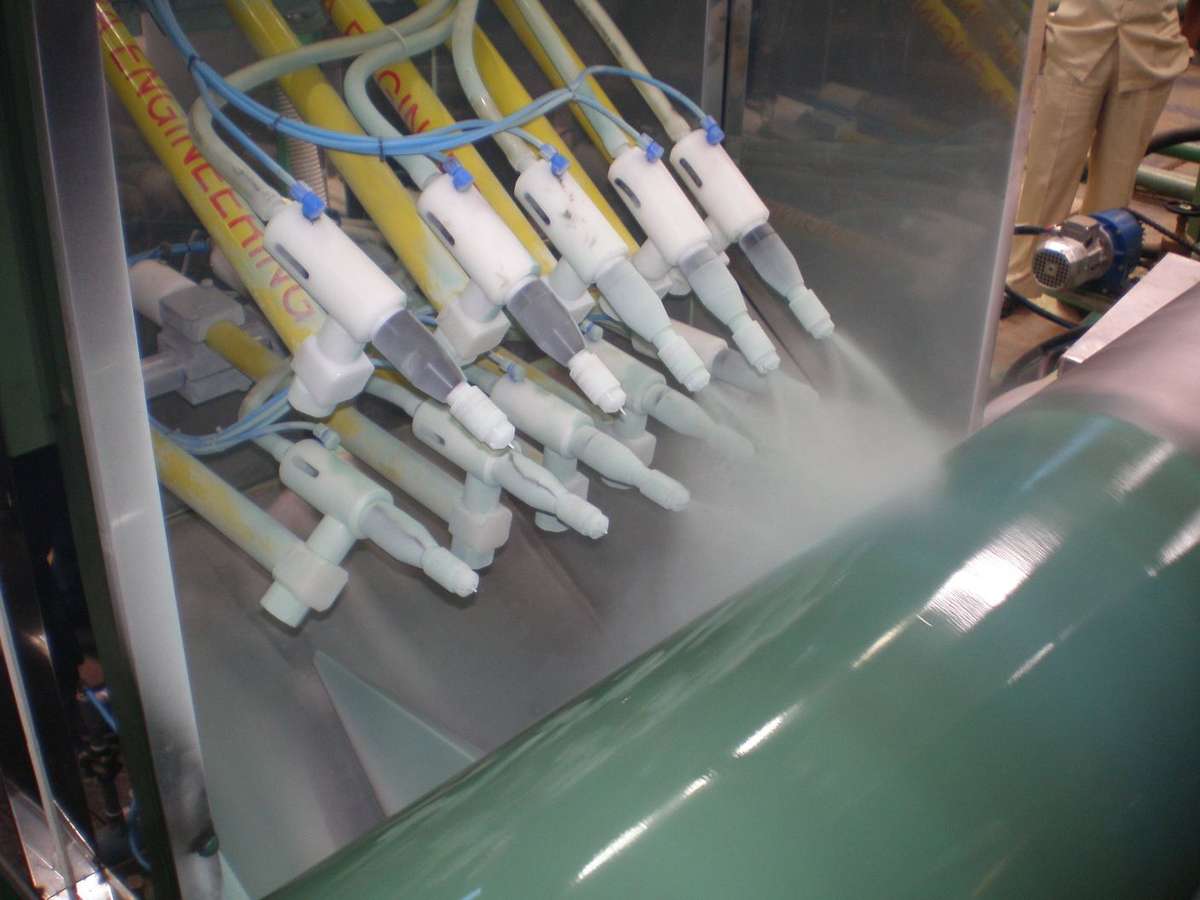

Electrostatic Spray
Powder Fusion
Cooling
Quality Inspection
Available for pipes from 2 inches to 144 inches in diameter, supporting all standard onshore applications
400-600 micrometers of uniform FBE providing robust corrosion protection
180-250°C for optimal electrostatic spray and powder fusion performance
Electrostatic spray application for uniform coverage and minimal waste
ISO 21809-2, CSA Z245.20, NACE SP0394 - Internationally recognized quality standards
Suitable for typical onshore pipeline applications from -40°C to +60°C
Decades of field-proven performance in buried pipeline applications worldwide
Exceptional performance under impressed current cathodic protection systems
Industry-leading value with reduced material and application costs
Rapid electrostatic spray process increases throughput and reduces downtime
Compatible with HDD installations for minimally invasive pipeline deployment
Performs exceptionally in trenchless methods including micro-tunneling and boring
Transmission and distribution pipelines for crude oil and natural gas in terrestrial applications
Municipal water distribution systems and industrial water transmission networks
Onshore pipelines in agricultural, residential, and industrial soil environments
HDD and directional drilling projects requiring reliable, durable coating systems
Contact our experts to specify FBE coating for your onshore pipeline project with proven reliability and cost-effectiveness
